Adaptor Startech PEX1PCI1

If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Adaptor Startech PEX1PCI1 at an unbeatable price.

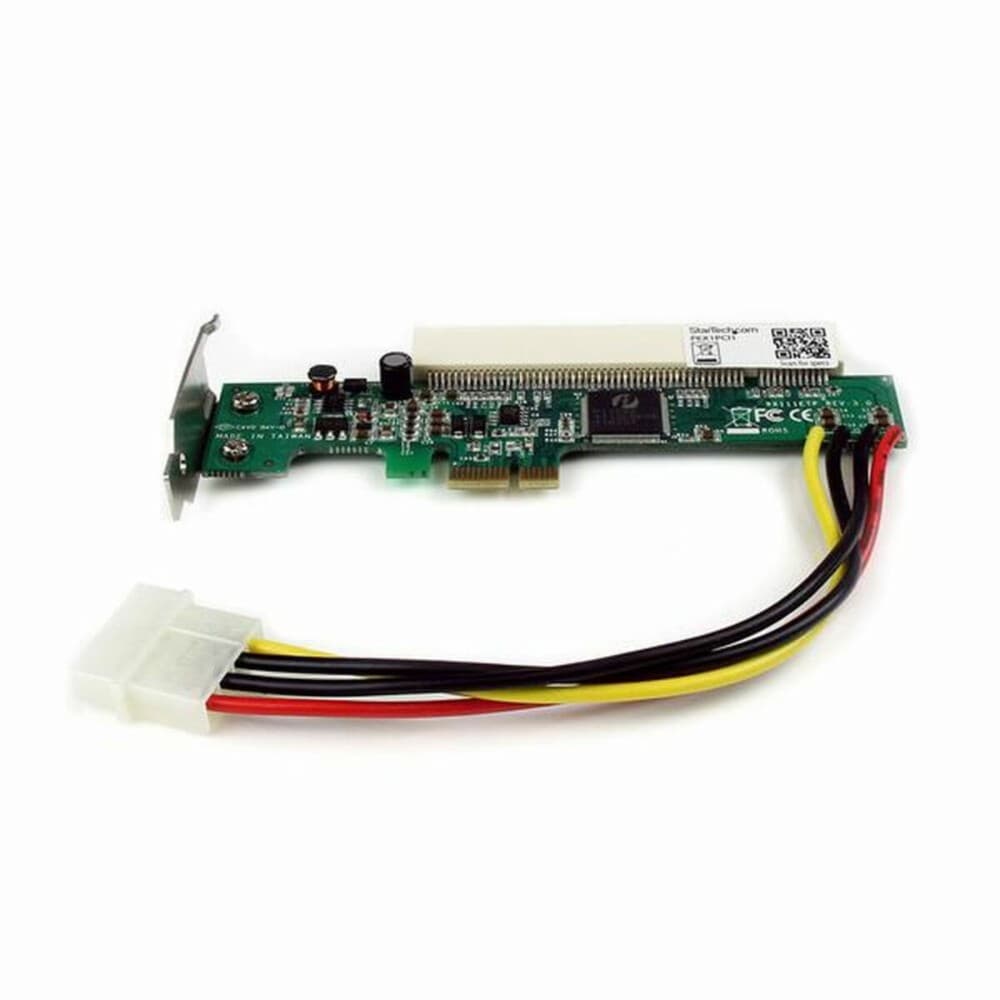

The Startech PEX1PCI1 adapter card is a versatile adapter designed to convert a PCI Express (PCIe) 1x expansion slot into a low- or mid-profile PCI slot, allowing installation of older or additional PCI cards in modern systems with PCIe slots. This solution is ideal for desktop computers or servers needing to expand their capacity using 32-bit PCI cards, also supporting PCI-X cards. Built with a PERICOM PI7C9X110BNBE integrated circuit, it meets PCI Express revision 1.0a and PCI 2.2 technical specifications, ensuring stable and efficient communication between the motherboard and installed card. Its physical features include a compact design measuring 70 mm wide, 135 mm deep, and 20 mm high, with a red color and multicolor details for easy identification inside the system. It also includes an LP4 power connector supplying energy to the installed PCI card, supporting universal voltage cards of 3.3V and 5V. The adapter comes with a full-size bracket for mounting in larger slots, increasing versatility across different chassis formats. Its cable design with SATA connections simplifies installation and maintenance. This adapter card is a practical and cost-effective solution for environments requiring legacy hardware use or expanding current systems’ functionality without replacing components, providing an effective bridge between PCI and PCIe technologies. Certifications such as CE, FCC, and RoHS ensure compliance with international quality and safety standards. In summary, the Startech PEX1PCI1 adapter is an essential technical tool for professionals and businesses seeking to maintain compatibility and extend expansion options in modern computing equipment.

• Type:
  • Card adapter
  • Wired
  • Adaptor
  • PCI Express 3.0
• Colour:
  • Multicolour
  • Red
• Characteristics: With cable
• Connections:
  • SATA
  • PCIe
• Height: 32 cm
