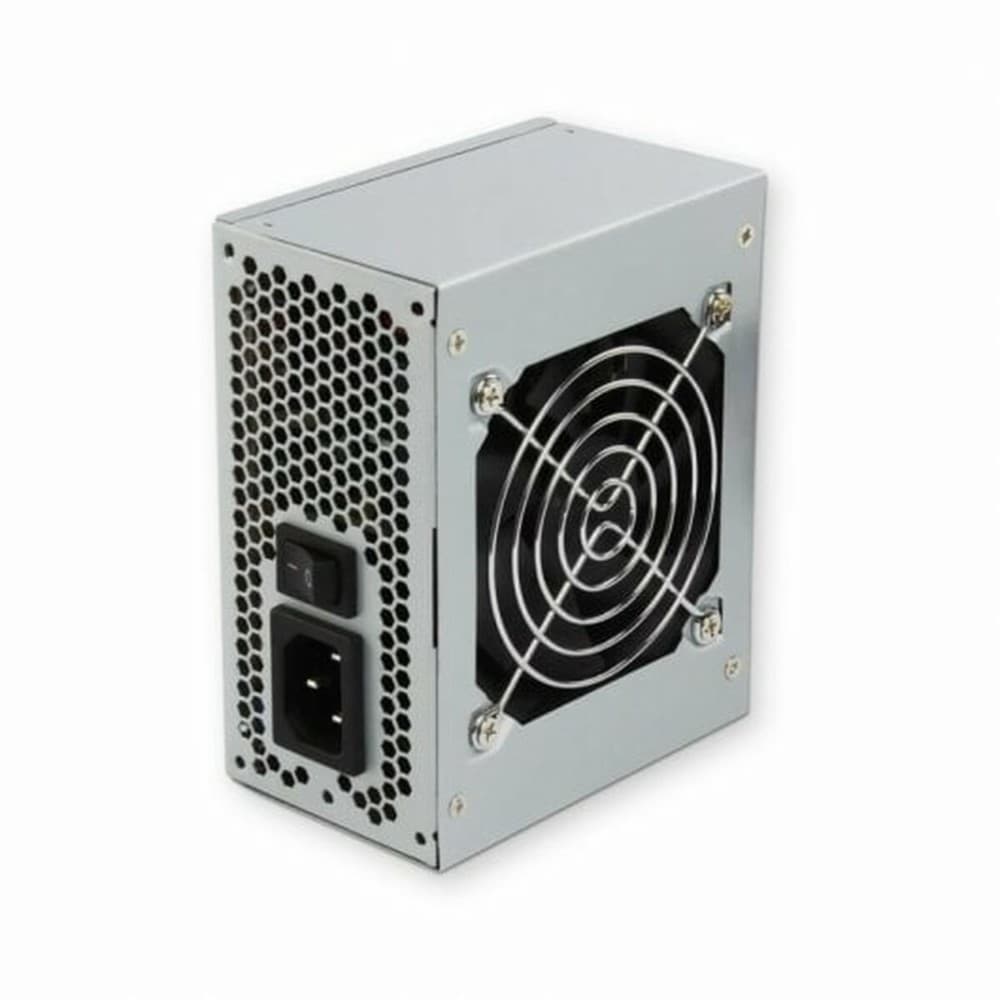

Power supply TooQ Fonte Ecopower II ATX 500 W RoHS CE

If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Power supply TooQ Fonte Ecopower II ATX 500 W RoHS CE at an unbeatable price.

The power supply TooQ Fonte Ecopower II offers a reliable, efficient solution for compact and standard desktop PCs, combining ATX and SFX compatibility with 500 W output suitable for most office and home setups. Its adaptable form factor allows installation in ATX and Micro ATX cases as well as small SFX chassis, thanks to its compact size of 12.5 x 10 x 6.35 cm, making it easier to fit in tight spaces. It operates with a 220 V input and 50 - 60 Hz frequency, using a standard EU plug and direct connection to the mains. For connectivity, it includes a main ATX 24-pin connector, an ATX 8-pin CPU power connector and 2 SATA connectors for storage drives, covering the usual requirements of a basic or mid-range modern PC. It features a built-in on/off switch on the chassis for more convenient power control and a fan of approximately 80 mm in diameter designed to keep noise around 20 dB, helping to maintain quiet operation in office or home environments. The silver finish and compact design make it suitable for system builders and users who want a discreet, functional PSU. It complies with CE and RoHS certifications, ensuring conformity with European safety standards and hazardous substances regulations, and includes a user manual to assist correct installation in the PC. Overall, the TooQ Fonte Ecopower II 500 W is a versatile, compact power supply, ideal for ATX and SFX systems that need stable power in line with current standards.

• Type: Power supply
• Ventilator:
  • Ø 8 cm
  • 1
• Power supply: Electric Network
• Approx. dimensions: 12,5 x 10 x 6,35 cm
• Connections:
  • ATX 24-pin x 1
  • ATX 8-pin x 1
  • CPU 4+4 PIN
  • SATA
  • ATX 24-pin
  • 24 PIN x 1
  • SATA x 2
• Type of plug: Plug EU
• Form factor:
  • SFX
  • ATX
• Product with plug: Yes
• Recommended use:
  • Desktop PC
  • PC
• Depth: 125 mm
• Version ATX: 1.3
• AC input frequency: 50-60 Hz
• Colour: Silver
• Characteristics: On/off interrupter
• Power: 500 W
• Voltage: 220 V
• Compatible:
  • ATX
  • Micro ATX
• Frequency: 50 - 60 Hz
• Includes: Instruction manual
• Certificate:
  • RoHS
  • CE
• Noise level: 20 dB
• Approx. diameter: Ø 80 cm

Ecopower II is the next generation of Ecopower TOOQ power supply. The new Power Supplies version includes high quality Active PFC (Active PFC, PF> 0.99, not all models have Altive PFC), which guarantees at least 78% efficiency. With Active PFC technology, the power supply produces much less heat than another with Passive PFC, which can prolong the power supply life. In addition, the Ecopower II series has a super quiet high quality fan, very stable dual +12V rail and high-tech electronic protection system.

• Total power: 500 W
• AC input frequency: 50 - 60 Hz
• Power Good signal delay range: 100 - 500 ms
• Power protection features: Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
• Motherboard power connector: 20+4 pin ATX
• Motherboard power cable length: 33 cm
• Number of SATA power connectors: 2
• SATA power cable length: 480 mm
• CPU power connector (4+4 pin): Y
• CPU power cable length: 43 cm
• ATX power connector (20+4 pin): Y
• Purpose: PC
• Power supply unit (PSU) form factor: SFX
• Supported motherboard form factors: micro ATX
• ATX version: 1.3
• Noise level: 20 dB
• Mean time between failures (MTBF): 10000 h
• Certification: CE
• Product colour: Silver
• Fan diameter: 8 cm
• Number of fans: 1 fan(s)
• On/off switch: Y
• Operating temperature (T-T): 0 - 40 °C
• Width: 63.5 mm
• Depth: 125 mm
• Height: 100 mm
• Package width: 80 mm
• Package depth: 197 mm
• Package height: 165 mm
• Package weight: 975 g
• Package type: Box
• Sustainability certificates: RoHS
• Number of cartons per pallet: 360
• Master (outer) case volume: 48848 cm³
• Quantity per master (outer) case: 20 pc(s)
• Manual: Y
• Package volume: 2442.4 cm³
