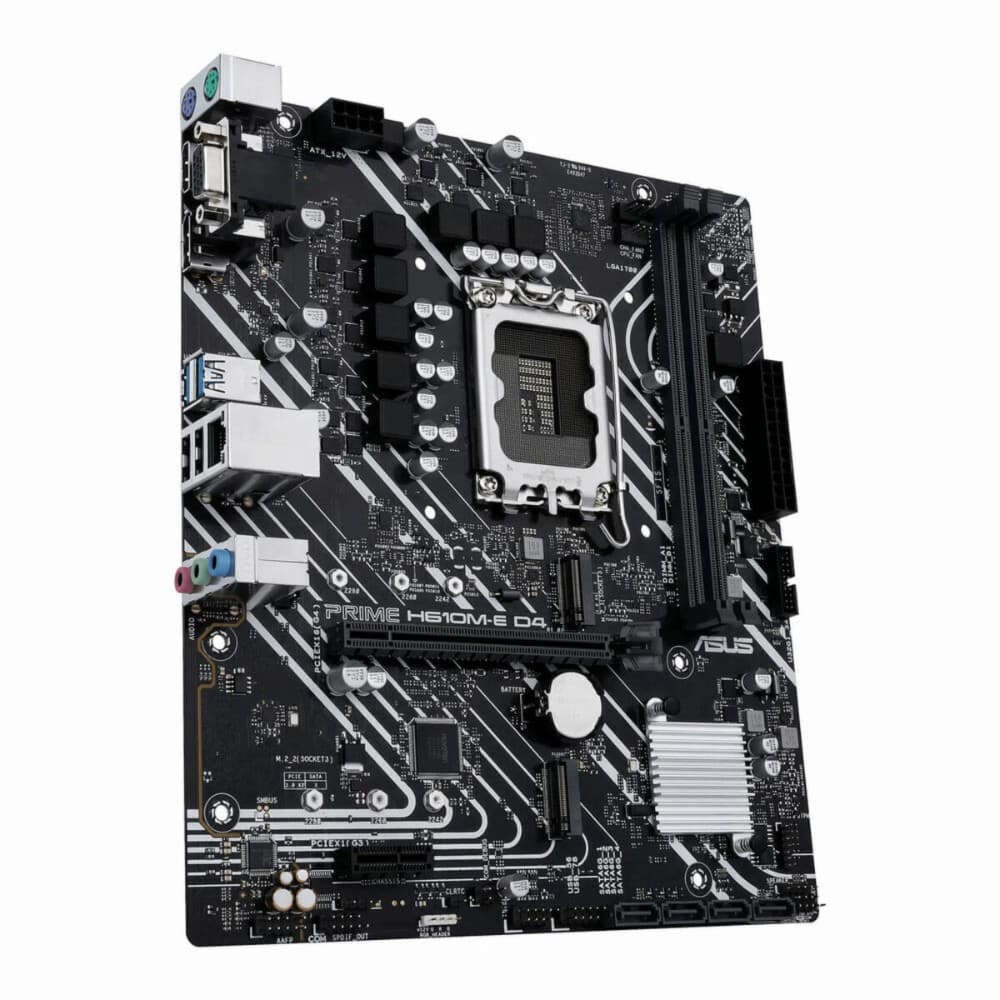

Motherboard Asus PRIME H610M-E D4-CSM

If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Motherboard Asus PRIME H610M-E D4-CSM at an unbeatable price.

The motherboard Asus PRIME H610M-E D4-CSM is designed for desktop PCs based on latest-generation Intel processors, offering a stable and compact MicroATX platform for general use, advanced office work or light workstations. It features the Intel H610 chipset and LGA 1700 socket, compatible with a wide range of Intel® Celeron®, Pentium® and Intel® Core™ i3, i5, i7 and i9 CPUs, allowing performance to be adapted to user needs. For memory, it includes 2 DDR4-SDRAM DIMM slots with dual channel, supporting up to 64 GB and speeds up to 3200 MHz, ensuring good multitasking capacity and a responsive system. For expansion, it offers 1 PCI Express x16 Gen 4.0 slot for a dedicated graphics card and 1 PCI Express x1 Gen 3.0 slot for additional expansion cards, plus 2 M.2 (M) slots for high-speed SSDs and 4 SATA III ports for hard drives and standard SSDs, enabling flexible storage setups. Rear connectivity includes 1 HDMI 2.1 port, 1 DisplayPort 1.4 and 1 VGA (D-Sub), allowing multi-monitor configurations with the integrated graphics of compatible processors, together with 7.1-channel audio output and S/PDIF connector for digital sound. Networking is provided by Gigabit Ethernet (RJ45), ensuring a fast, stable wired connection, while USB connectivity includes 2 USB 2.0 ports, 2 USB 3.2 Gen 1 Type-A ports on the rear panel and internal headers for more front USB ports. The board also integrates essential connectors for assembly and maintenance, such as a 24‑pin ATX power connector, 12 V power connector, CPU fan connector and 2 chassis fan connectors, plus a TPM connector for security modules, COM headers and internal audio connector. Its multicolor PCB and 244 x 211 mm size make installation easy in most MicroATX cases, and it is fully compatible with Windows 10 x64 and Windows 11 x64, making it a reliable base for home or office PCs that need stability, good expansion options and up-to-date connectivity. Overall, the Asus PRIME H610M-E D4-CSM motherboard is a solid, well-balanced solution for modern desktop systems with Intel LGA 1700 processors.

• Type:
  • Motherboard
  • ATX
• Connections:
  • HDMI
  • USB
  • USB 2.0
  • VGA
  • PS/2
  • RJ45
  • Jack 3.5 mm
  • DisplayPort
  • SATA
  • Ethernet LAN
  • S/PDIF x 1
  • USB 3.2
  • VGA Sub-D
  • M.2
  • HDMI x 1
  • 2 x USB 2.0
  • SATA x 4
  • PS/2 x 1
  • M.2 x 2
  • DIMM x 2
  • HDMI 2.1 x 1
  • DIMM
  • DisplayPort x 1
  • USB 2.0 x 2
  • RJ45 x 1
• Number of memory slots: 2
• Form factor:
  • mATX
  • MicroATX
• Width: 244 mm
• Chipset:
  • H610
  • INTEL H610
• USB 2.0: 2
• Power supply: ATX
• Memory Type:
  • DDR4 SDRAM
  • DDR4
• Colour:
  • Black
  • Multicolour
• Interface: Gigabit Ethernet
• Speakers: 7.1
• Compatible:
  • DDR4-SDRAM
  • PC
• Connectivity: Ethernet LAN
• Not included: WiFi
• Includes: SATA
• Frequency: 2133 MHz
• RAM Memory: 64 GB RAM
• Processor Family: Intel
• Maximum RAM Memory: 64 GB
• Material: Alloy steel
